Finnmark FD-5 Trinity XL Infrared & Steam Sauna Combo | 5-Person
In Stock - Ready to Ship
The Finnmark FD-5 Trinity XL is the largest combination cabin in the range: UL Listed full-spectrum infrared, a traditional Harvia KIP rock heater for real steam, and red light therapy, for five people. Thermo-Aspen exterior, Western Canadian Cedar interior, Wi-Fi touchscreen control.
- Capacity — 5 people, 130 cu. ft. cabin
- Two heat sources — 2 700 W full-spectrum infrared plus a Harvia KIP45B rock heater at 4.5 kW
- Two temperatures — 170°F on infrared, 190°F traditional with steam
- Red light therapy — Spectrum Red Light panel included
- Sauna stones included — one 44 lb box of Harvia AC3000
- Power — 240V, NEMA 6-15
- Controls — Controller 2.0, LCD Wi-Fi touchscreen with Bluetooth audio
- Interior dimensions — 71"W x 57.5"D x 75.5"H
- Exterior footprint — 75"W x 64"D x 83"H
- Glass door — 8mm tempered with gasket
- Weight — 575 lbs assembled, 840 lbs shipping
Choose options

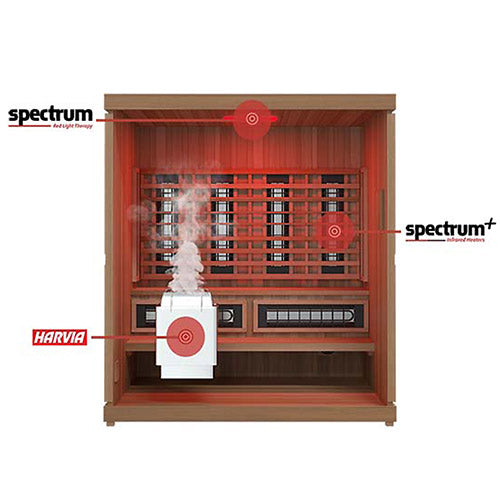

The only cabin in the range that does all three
The Finnmark FD-5 Trinity XL brings together three things usually sold separately: UL Listed full-spectrum infrared panels, a traditional Harvia rock heater for genuine steam, and a Spectrum Red Light therapy panel. All of it in one 130 cubic foot cabin seating five. Run the infrared alone at up to 170°F for a long session, or fire the rock heater and ladle water over the stones for a traditional sauna at up to 190°F.
A Harvia KIP45B rock heater, and stones in the box
The traditional side uses a Harvia KIP45B at 4.5 kW, a Finnish-made wall-mounted heater rated for rooms between 100 and 210 cubic feet, with direct rock-to-element contact and a large stone capacity. One 44 lb box of Harvia AC3000 stones is included. Note that natural stones vary in shape and size; a second box gives you the freedom to select the best fit.
Red light therapy included
Spectrum LED near-infrared ceiling lights are combined with a Spectrum Red Light therapy panel, a low-level light source in the red wavelengths, included as part of the cabin rather than sold separately.
Controlled from your phone
Controller 2.0 is a built-in LCD Wi-Fi touchscreen with Bluetooth audio. You start the cabin and set the temperature remotely, so it is at temperature when you walk in, and you play your own music through the sauna rather than beside it.
Thermo-Aspen outside, Western Canadian Cedar inside
The exterior is Thermo-Aspen, treated with heat and steam rather than chemicals, stable against rot, warping and decay. The interior is clear Western Canadian Cedar: naturally antimicrobial, stable in humidity, comfortable against the skin at the higher temperatures a rock heater reaches.
Dimensions and delivery
Interior 71"W x 57.5"D x 75.5"H, exterior 75"W x 64"D x 83"H, 130 cubic feet. Door 23.625"W x 68.875"H in 8mm tempered glass with gasket. Runs on 240V through a NEMA 6-15 connection. Assembled weight 575 lbs, shipping weight 840 lbs in an 80"W x 40"D x 83"H crate. Assembly instructions, specification sheet and certifications are in the Technical tab.
Curious about what sauna research actually shows? Read our guide: Sauna Benefits: What the Research Actually Says.
- Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat.
- Spectrum Red Light™ Therapy. 192 Diode LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
- Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
- Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
- 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a Red light therapy LED panel.
- Built-in LCD Wi-Fi touchscreen controller with bluetooth audio.
- Audio with 6" Hi-Fi speakers, 8mm tempered glass for the ultimate thermal retention.
- Extra large two-tier bench system.
- Low EMF sauna tested by a NASA award winning testing facility.
- High Emissivity infrared heaters.
Harvia KIP Series B 4.5KW Sauna Heater
- Wall-mounted
- Stainless steel construction
- 4.5kW
- For sauna rooms from 100 to 210 cu. ft.
- Requires a minimum of 50 lbs of stones (1 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Built-In controls
- Available in 240V/1PH operation or 208V/3Ph operation
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
- 2-Year Warranty (Consumer Use)
- Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
What a Full Spectrum Infrared Session Feels Like
- The Spectrum Plus incoloy heaters warm your core body temperature directly, producing a deep, full-body sweat at a lower air temperature than a traditional sauna.
- The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate, much like a traditional sauna but without the unbearable air temperatures. The result is a comfortable session that still works up a full sweat in a short amount of time.
- This Full Spectrum sauna combines long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ panels. The combination delivers higher temperatures and full body coverage across the cabin.
- Many athletes build an infrared session into their routine after training, for the warmth and the muscle relaxation that follow.
Wondering what the research actually supports? We cover it honestly, sources included, in Sauna Benefits: What the Research Actually Says.
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series B 4.5kW Sauna Heater
- 1 Box of the Harvia AC3000 0-10cm Sauna Stones (44 lbs)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Spectrum LED Near Infrared Ceiling Lights Combined with Spectrum Red Light Therapy
- Controller 2.0, Built-In LCD Wi-Fi Touchscreen Control Panel with Bluetooth Audio
- ETL Certification
- Limited Warranty
Model | FD-5 |
External Materials | Thermo-Aspen |
Interior Materials | Western Canadian Cedar |
Volts | 240 |
IR Watts | 2700 |
Amperage | 15 | TBD |
Plug Type | NEMA 6-15 |
Maximum Temperature | IR 170° F | Traditional 190° F |
Interior Dimensions | 71"W x 57.5"D x 75.5"H |
Exterior Dimensions | 75"W x 64"D x 83"H |
Room Volume | 130 cu. ft. |
Door Dimensions | 23.625"W x 68.875"H |
Door Handle Dimensions | 1.5"W x 13.25"H |
Glass Thickness | 8mm W/Gasket |
Product Weight | 575 lbs |
Shipping Dimensions | 80"W x 40"D x 83"H |
Shipping Weight | 840 lbs |
Model | KIP45B |
Kilowatt Rating | 4.5kW |
Primary Fuel | Electric |
Minimum Adjusted Cubic Feet | 100 |
Maximum Adjusted Cubic Feet | 210 |
Voltage | 240V |
Phase | 1PH |
Amperage | 18.8 Amps |
Heater Weight | 40 lbs |
Shipping Weight with Sauna Stones | 84 lbs |
Width In Inches | 16" (406mm) |
Depth In Inches | 11" (279mm) |
Height In Inches | 24" (609mm) |
