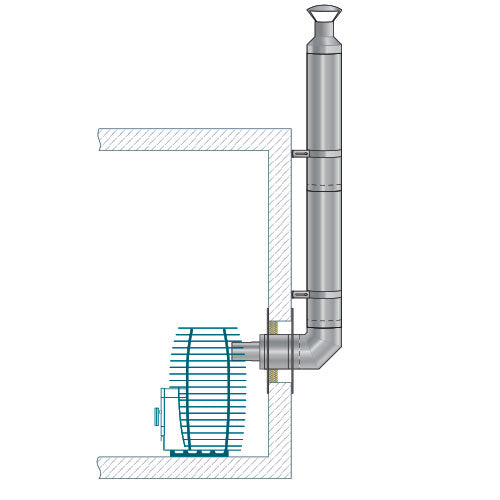

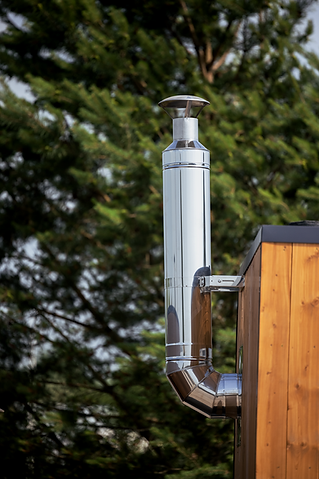

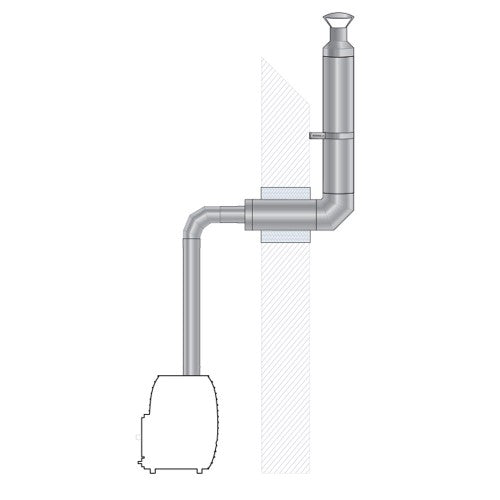

The HUUM Thru-Wall Chimney Set is a complete, high-quality chimney solution designed for horizontal wall installation with HUUM wood-burning sauna stoves. Engineered for safety, efficiency, and clean integration, this system allows proper smoke ventilation while preserving a refined, professional finish inside and outside the sauna.
The kit includes single-wall and double-wall insulated chimney components, a cleaning hatch elbow, a chimney base, two-piece wall cover plate, 90-degree double-wall elbow, chimney support bracket, and a chimney cap—providing everything required for a secure, code-compliant, and weather-resistant installation. Designed to withstand high temperatures and demanding sauna conditions, the HUUM Thru-Wall Chimney Set ensures reliable draft performance and long-term durability for authentic wood-fired sauna experiences.
• Through the wall
• Mounts in vertical position
• Works with smaller spaces
• Constructed of stainless steel
• Compatible with all Sauna Stoves by HUUM
• Designed, engineered, and made in Estonia

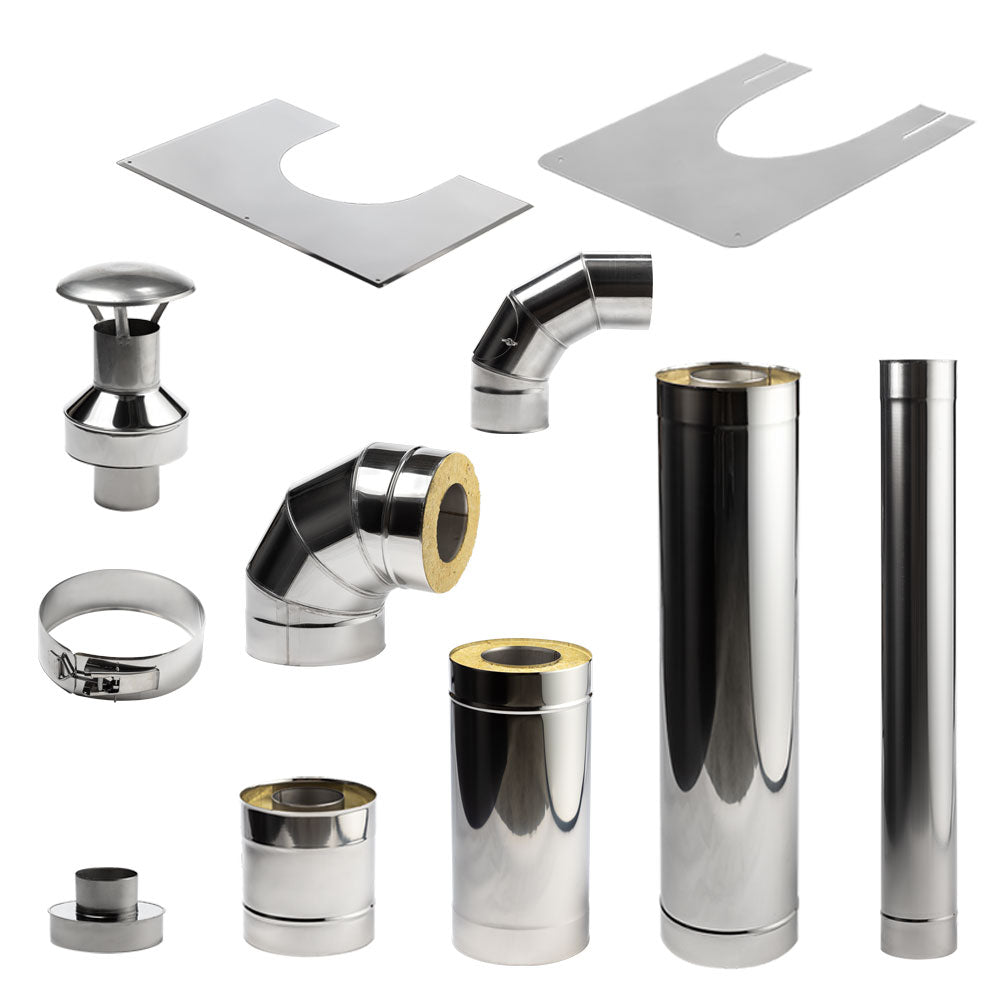

• Single-Wall Pipe (2)
• Chimney Base
• Single-Wall Elbow with Cleaning Hatch
• Double-Wall Chimney
• Wall Cover Plates (2 Parts)
• 90-Degree Double-Wall Elbow
• Double-Wall Pipe
• Chimney Element Bracket
• Chimney Cap
| Model | THRU-WALL CHIMNEY |
|---|---|
| Construction Material | Stainless Steel |
| Single-Wall Pipe (1) Length | 39.37" (1000mm) |
| Single-Wall Pipe (2) Length | 9.8" (250mm) |
| Double-Wall Chimney Length | 19.7" (500mm) |
| Double-Wall Pipe Length | 39.37" (1000mm) |
| Total Length | 102.4" (2600mm) |
Spec Sheet
