Saunum Air Blending System – Perfectly Balanced Sauna Climate
Saunum’s patented air blending technology transforms your sauna by mixing the hottest steam from the ceiling with cooler, oxygen-rich air from the floor. This creates a consistent, breathable temperature throughout the room—improved by more than 60%.
Instead of the common imbalance where your head overheats above 200°F while your feet stay below 100°F, Saunum equalizes both heat and oxygen levels. The result is softer air, deeper sweating, and longer, more comfortable sauna sessions.
Experience a new standard of sauna comfort with Saunum’s revolutionary climate equalizing system.
Saunum is all about the air!
• The AIR we heat
• The AIR we feel
• The AIR we breathe
Enrich the air with Himalayan salt ions
The ions released from the patented Himalayan salt feature are propelled into the sauna to maximize their health benefits. Salt aerosol has long been used for its benefits as a decongestant, inflammation reduction, and possesses anti-microbial properties.
Add another dimension to your sauna with aromatherapy
Breathe deep, relax, let the room fill with heat and steam, and clear away your tension with the invigorating and awakening scents of Saunum’s available aromatherapy option.
Experience 6 distinct styles of sauna bathing
Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences.
• Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate
a traditional banya.
• Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense,
consistent heat.
• Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna.
• Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal
hot yoga sessions.
• Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber
creating a true salt sauna.
• Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.

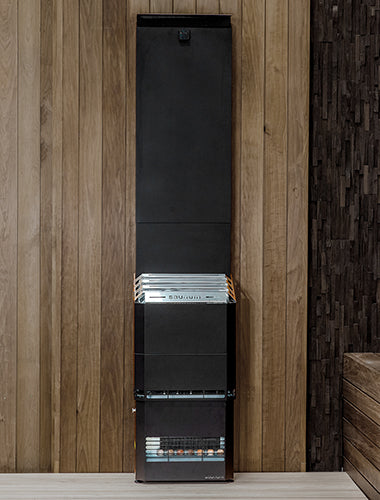

Air 7 Sauna Heater
• Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the
ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in
a way that heat and oxygen are felt head to toe.
• European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce
more luxurious steam. Large 132 pound stone capacity.
• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout
the sauna to deliver health benefits.
• Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready
at the time that you specify on your mobile device.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam,
the patented fan system will conveniently help dry your sauna.
• .UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam
to further transform your experience.
• For sauna rooms from 177 to 282 cu. ft.
AirIQ Wi-Fi Control
• Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
• Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
• Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
• Classic Nordic Steam Sauna
o For temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
• Humid Steam-Rich Sauna
o For temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
• Mild, Relaxing Sauna
o For temperatures from 104°F - 131°F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
• AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
• Modbus integration for smart home connection
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
o Sauna is Ready
o Heating Status
o Door is Open
o Overheating Protection Applied
• Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
• Outside sauna room installation
• Screen lock
• Child safety lock
• Temperature sensor
• Door sensor
Sauna Stones
• High-quality olivine diabase raw stone
• Rounded, pre-washed, and ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

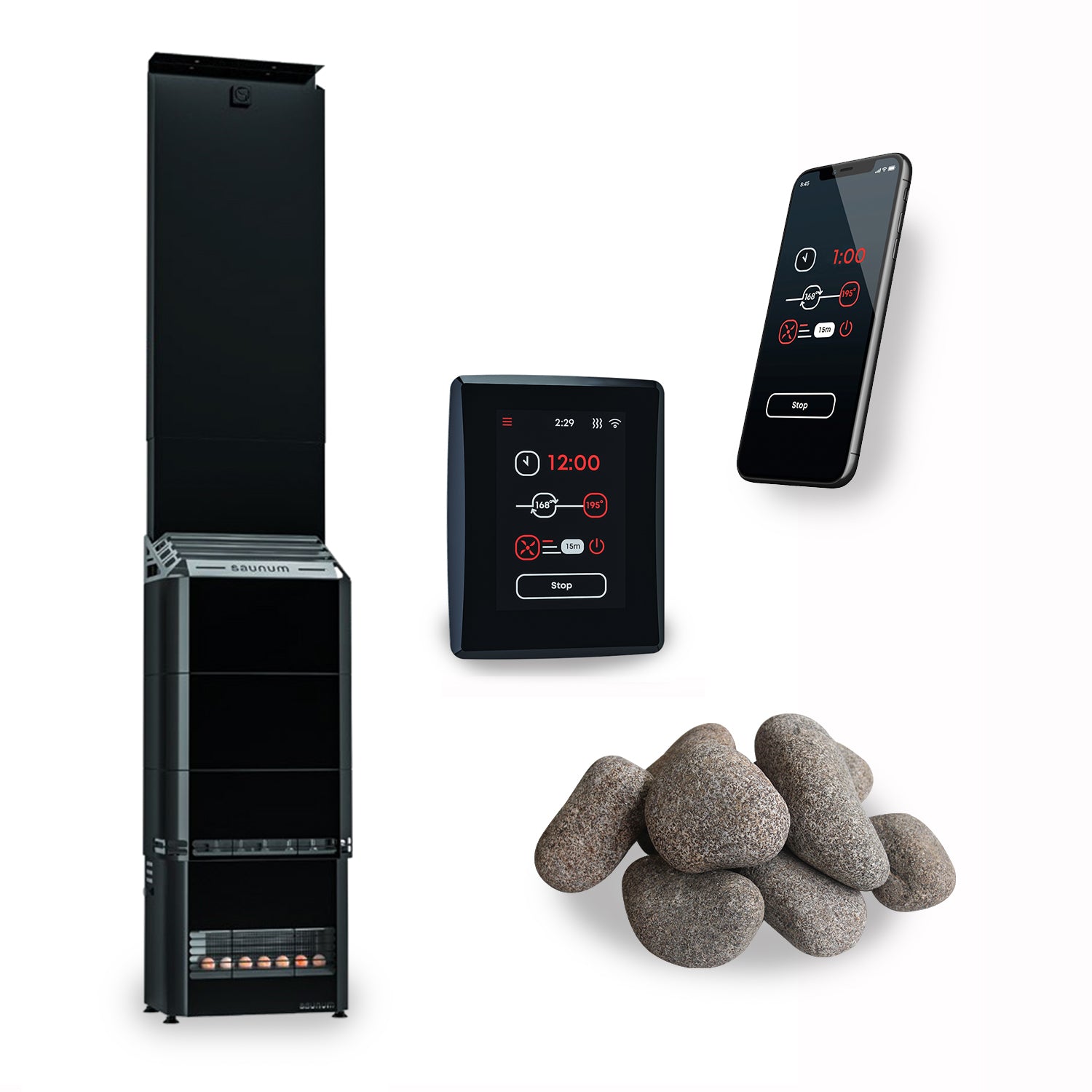

Air 7 Sauna Heater

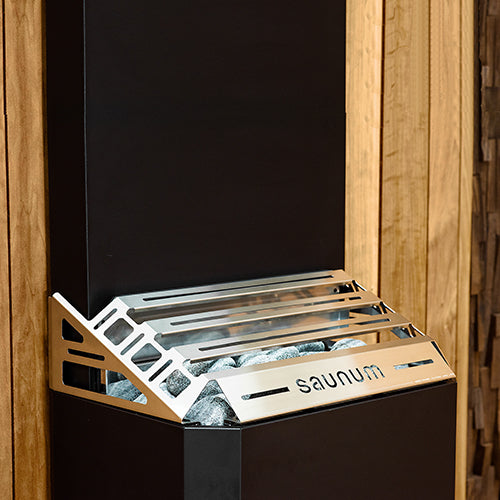

• Nordic Black Metal Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5' (152.4 cm)
• Heat Equalizer Electrical Cable, 5' (152.4 cm)
• Room Temperature Sensor & Cable, 9.5' (289.56 cm)
• Door Sensor & Cable Assembly, 9.83' (299.62 cm)
• IQAir Display Panel Cable, 16' (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty
AirIQ Wi-Fi Control
• Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
• Wall Mounting Plate and Fasteners
• Power Unit
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
• 132 lbs of 2" to 4" (5-10 cm) Round Sauna Stones
| Model | AIR 7 CSB PKG – Heat Equalizing System |
|---|---|
| Model | AIR 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake | 17.72" × 4" (450.09 × 101.6 mm) |
| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
| Cool Air Intake Size | 2" × 2.75" (50.8 × 69.85 mm) |
| Blended Air Output | 4.31" × 14.13" (109.47 × 358.90 mm) |
| Himalayan Salt and Aroma Tray Type | Removable, Slotted |
| Himalayan Salt and Aroma Tray Size | 16.5" × 4.5" (419.1 × 111.76 mm) |
| Model | AIR 7 CSB PKG – Sauna Heater System |
|---|---|
| Model | AIR 7 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heater Body Style | Solid Steel – Nordic Black |
| Heating Elements | Incoloy (Stainless Steel) |
| Heating Element Protection | Air Tunnels, Slotted Stainless Steel, Three |
| Room Size | 177–282 cu. ft. (5–8 cubic meters) |
| Wattage Rating | 6400 |
| Operating Voltage | 240 VAC |
| Phase | Single |
| Amperage | 26.67 |
| Weight | 115 lbs (52 kg) |
| Shipping Weight with Stones | 247 lbs (112 kg) |
| Width | 18.31" (465 mm) |
| Depth | 12.41" (315.3 mm) |
| Height | 71.95–94.49" (1827.53–2400.05 mm) |
| Minimum Ceiling Height | 71.95" (1827.53 mm) |
| Stone Capacity | 132 lbs (60 kg) |
| Stone Size | 2" to 4" (5–10 cm) |
| Circuit Breaker | See Installation and Operation Manual |
| Wire Size to Power Unit | (2) #8 + N + G |
| Wire Size – Power Unit to Elements | 7-Conductor Cable, #14 AWG, 90°C, 5' (152.4 cm) |
| Wire Size – Power Unit to Heat Equalizer | 5-Conductor Cable, #18 AWG, 90°C, 5' (152.4 cm) |
| Room Temperature Sensor | Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm) |
| Model | AIRIQ WI-FI Display Panel |
|---|---|
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16 Languages |
| Wi-Fi Capability | Wi-Fi, App-Based Updates, and Operation |
| Notifications | Sauna Ready, Heater Status, Open Door, Overheating Protection |
| Safety Features | Admin, Screen Lock, Door Sensor, Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Width | 3.3" (83.82 mm) |
| Depth | 0.8" (20.32 mm) |
| Height | 4.1" (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104°F (40°C) |
| Maximum Temperature Setting | 194°F (90°C) |
| Duration Timer | 1–6 Hours |
| Display Panel Cable | 4-Conductor Cable (150°C), 20 AWG, 15' (475.2 cm) |
| Door Sensor and Cable Assembly | 2-Conductor Cable (150°C), 20 AWG, 9.83' (299.62 cm) |
| Door Sensor Probe | 1" Long × 0.24" Diameter (25 × 6 mm) |
| Operating Temperature Range | -4 to 145°F (-20 to 62°C) |
| Programmability | Weekly Scheduling with Three Programmable Sessions |
| Temperature Settings | Fahrenheit or Celsius |
| Region Settings | North American and European Versions |
| Room Temperature Sensor | Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm) |
